ADH8011
Overview

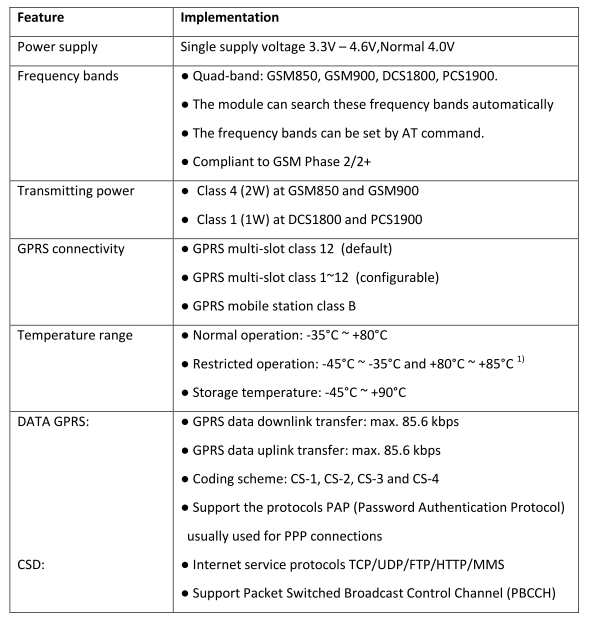

The ADH8011 is a Quad-band GSM/GPRS engine that works at frequencies GSM 850MHz, GSM 900MHz, DCS 1800MHz and PCS1900MHz. The ADH8011 features GPRS multi-slot class 12 and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4.
The ADH8011 is integrated with Internet service protocols, which are TCP/UDP, FTP and HTTP. Extended AT commands have been developed for customer to use these Internet service protocols easily. The modules are fully RoHS compliant to EU regulation.
Downloads
