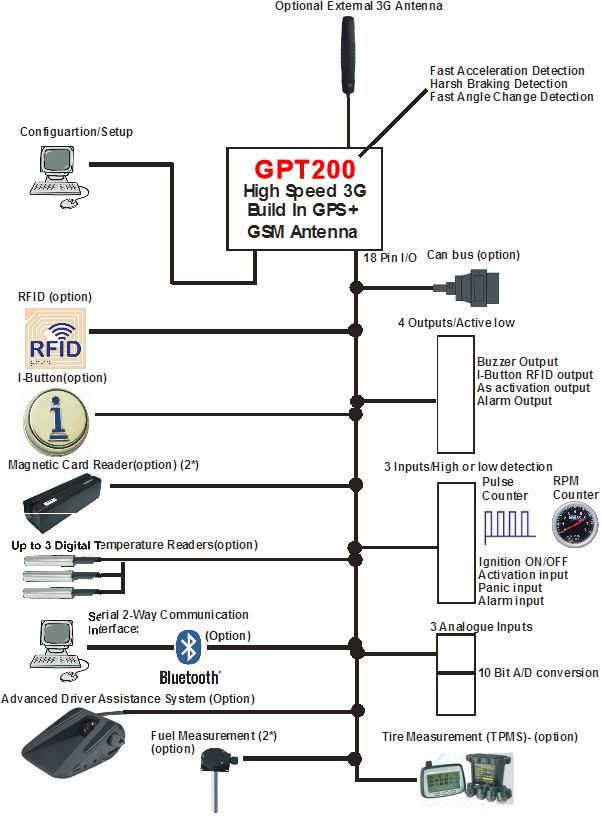

* The GPS is integrated inside the 3G Module.

GNSS engine (GPS and GLONASS) with A-GPS (Offline and Online).

* High speed 3G modem.

* Save and Auto Resend up to 31620 locations

* 4 negative outputs (200mA max per output)

* 3 negative or positive inputs (active low or active high to activate input).

(Inputs can be configured for multiple functions)

* 3 Analogue inputs with 2 Analogue input from 0 to +3.3 Volt – MAX with 10 Bit resolution and 1 Analogue input from 0 to +18Volt-MAX with 10 Bit resolution.

* External +3.3Volt DC or +5Volt DC output power.

* 4 * Serial RS232 port (3 * 9600 baud Rate and 1* High speed 115200) for external communication, Operating System upgrade or direct access to GSM. Suitable for Internet connection or data download or upload (FTP download and upload is available).

* Detects external power loss (Measures external power voltage).

* I-BUTTON, RFID (Mifare), Magnetic Card Reader, TPMS, CAN Bus, Blue tooth Display, GPS speed display connection option, MDAS Advanced Driver Assistance System, Fuel measurement system (2 are supported) and many more.

* Up to 3 Digital temperature reader connection option (simple 2 or 3 wire connection).

* Build IN GPS

* Build IN GSM or optional external GSM Antenna (Or 2 * GSM Antenna).

* Build in backup battery.

* Pulse counter or RPM counter input

* Direct serial RS232 (9600 baud Rate) GPS data output port for Navigation purpose.

* Operating temperature range -40 deg. C to +85 deg. C (Battery 0 – 60 deg. C)
