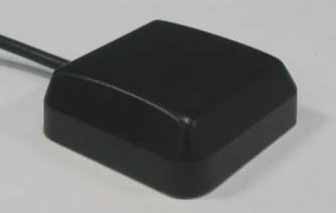

  • GEA003
    GEA003

GEA003























ElectricalProperties

ElectricalSpecifications
Inputvoltage
3.3V(2.8V~3.7V)
Current
3.3V9mATypical
Antenna
OperatingFrequency
1575.42±1.023 MHz
Gainat10° elevation
-1dBicTyp
Gainat  Zenith
5.0dBicTyp
Bandwidth
10MHzmin.@S1110dB
Polarization
R.H.C.P
AxialRatio
3.0dBTyp
LNA
OperatingFrequency
1575.42±1.023MHz
Gain
28dBTyp
NoiseFigure
1.5dBTyp



Filter
DRFilter
20dB30dBmin @fo+/-50MHz
30dB35dBmin @fo+/-100MHz
*fo=1575.42MHz
OutputVSWR
2.0max



MechanicalProperties

Parameter
Description
AntennaType
ActiveAntenna
AntennaMaterial
ABS
Touch  Type
ScrewType
ConnectorType
SMA180Male  (Optional)
AntennaDimensions
39.4mm×34.3mm  ×12.6mm
AntennaCableTotalLength
RG-174/U3000mm±20  (Optional)
AntennaColor
Black
OperatingTemperatureRange
-30°C to+80°C
StorageTemperatureRange
-40°C to+80°C
