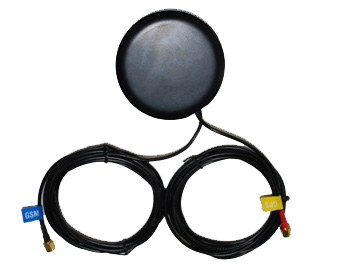

【GPS+GSM Antenna】
Part No.：GM-112
GPS Antenna :
Center Frequency：1575.42MHz±3 MHz
V.S.W.R：1.5:1
Band Width：±5 MHz
Impendence：50 ohm
Peak Gain：＞3dBic Based on 7×
Gain Coverage：＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization：RHCP
GSM Antenna:
Center Frequency：824MHz~960MHz /1710MHz~1990MHz
V.S.W.R:2.0:1
Impendence:50 ohm
Typical Gain:2dBi+/-1dB@900MHZ , 1dBi+/-1dB@1800MHZ
LNA/Filter :
LNA Gain(Without cable):28dB Typical
Noise Figure:1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ):7dB Ｍin f0+/-20MHZ ;
20dB Ｍin f0+/-50MHZ;
30dB Ｍin f0+/-100MHZ
V.S.W.R:＜2.0
DC Voltage:3.0V to 5.0V or others
DC current:5mA@3.0V ， 10mA@5.0V Max
Mechanical:
Weight:＜130gram
Size:70MMX70MMX
Cable:RG174 3 meters or Customized
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX
Mounting :Magnetic
Housing:Black
Environmental:
Working Temp:
Vibration Sine sweep
Humidity Humidity:95%~100%RH
Weatherproof:100%Waterpro
