Features
North America (AT&T, T-Mobile): LE910-NA1-S
LTE 700 (B12/B13), 850 (B5), AWS
1700 (B4), 1900 (B2)
UMTS 1900 (B2), 850 (B5)
North America (Verizon): LE910-SV1-S
LTE 1900 (B2), AWS1700 (B4), 700 (B13)

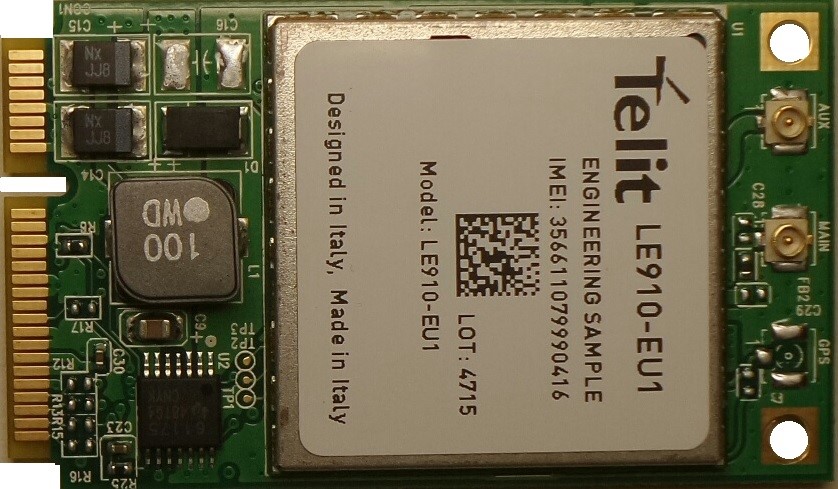

Europe : LE910-EU1-S
LTE 2100 (B1), 1800 (B3) 2600 (B7)
900 (B8), 800 (B20) GSM 1800 (B3), 900 (B8)
Australia,New Zealands: LE910C1AP-S
LTE B1(2100), B3(1800), B5(850), B8(900) B28(700) 3G B1(2100),B5(850),B8(900) •
Wireless bearers •
LTE: Upload 5Mbps max, Download 10Mbps max. • SMS, text and PDU mode, cell broadcast • SIM application toolkit
TECHNICAL DETAILS •
RF power (max.) • Output power
- Class 3 (0.2 W, 23 dBm) @ LTE
- Class 3 (0.25 W, 23 dBm) @ 3G
- Class 4 (2W) @ GSM 900
- Class 1 (1W) @ DCS 1800
INTERFACES •

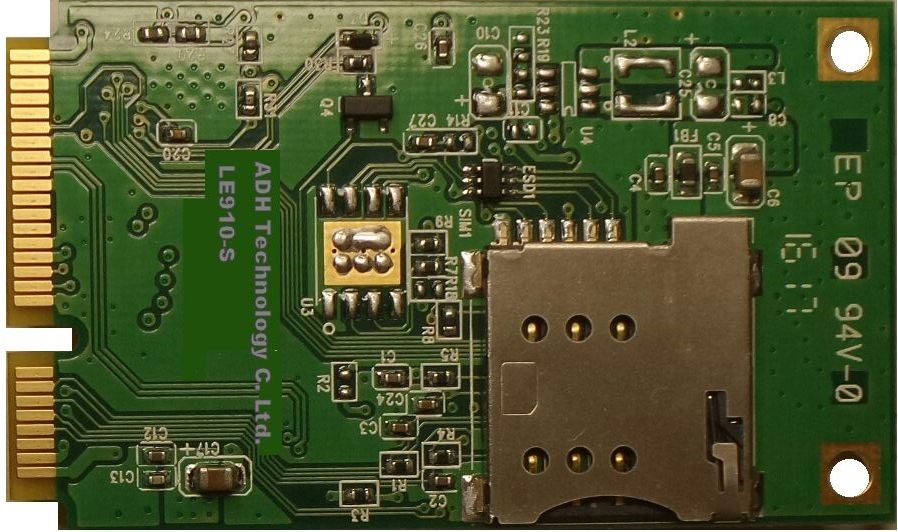

Standard miniPCIe USB 3.3V (3.0-3.5V) typical. up to 480Mbps data interface • SIM card interface (3V/1.8V) • Antenna connector
Driver •
Driver for Windows XP,Vista,7,8,10, Linux, • TCP/IP stack access via AT commands
Others •
Operating temperature range: Normal operation: -30C to +65C Extended operation: -40C to +85C • Weight:5 g • Size: 51 x 30x 4.8 mm • RoHS and EuP compliant • Firmware upgrde through USB port
Approval •
Attach module is from Telit which may has been approved by CE, R&TTE, GCF, FCC, PTCRB,IC, AT&T.
