Feature
- Build on high performance GPS single chip
- High Sensitivity -163 dBm
- Low power consumption: Max 40mA@3.3V
- Integrated LNA with low-gain mode for active antenna option
- 56 channels in Search mode and 22 channels "All-in-View" tracking
- Up to 60,000 simultaneous search windows for fast TTFF and high sensitivity acquisitions
- Average cold start time under 29seconds(open sky)
- Support standard NMEA-0183 and UBLOX protocol

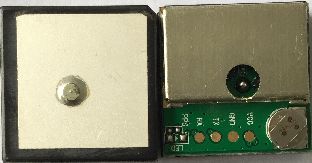

- Patch Antenna Size:18.4(w)mmX18.4(d)mmX4(h)mm
- RoHS compliant (Lead-free)
Application
- Handheld GPS receiver application
- Ideal for PDA, Pocket PC and other consumer devices requiring Positioning capability
- Geographic Surveying
- Sports and Recreation
- Marine Navigation, Fleet Management
- Automotive application
- Car navigation and tracking
- AVL and Location-Based Services
- Timing application
