Main Specifications

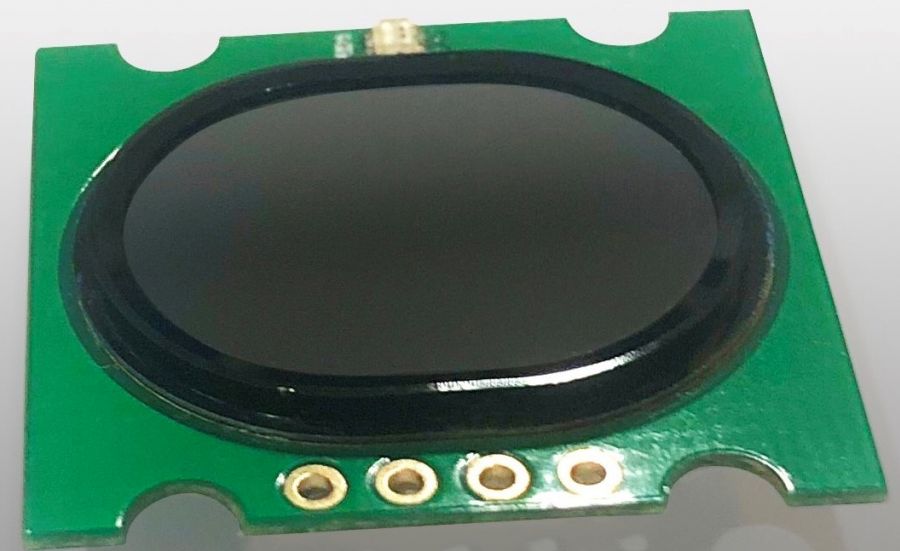

l Module dimension ：35 x 23mm2 with Oval-shaped sensor
l Pixel Array ：192 x 192
l Sensing Area ：9.6 x 9.6 mm2
l Resolution ：508DPI
l Gray Levels ：8 bits
l Enroll times: 1 times or 3 times
l Fingerprint database storage :5000 sets
l Module Interface ：UART / USB
l Supply current @ voltage ：TBD @ 3.3V
l Low Power Design with Metal Ring ( Decorative )
l Finger Press Direction ：360 degrees arbitrary
l Sapphire Glass support to 9H hardness
l Anti-interference ：ESD protection circuit, Reset circuit, anti-noise circuit, etc.
l ESD performance ：+- 15KV Air / +-8KV Contact discharge
l Waterproof performance ：IP67
l Module interface connector ：Refer to the connector shape specification
